Apuljack replacement for Dometic AES RMD8505 and RMD8555; Equivalent to Dometic Part number 241397712 or EAN 7332464214413.

If your unit looks like the picture on this listing then this product will fit.

These displays are now obsolete from Dometic so we have designed an easy to fit equivalent.  One of the major features of our new display is that you DO NOT HAVE TO REMOVE THE FRIDGE to fit it!

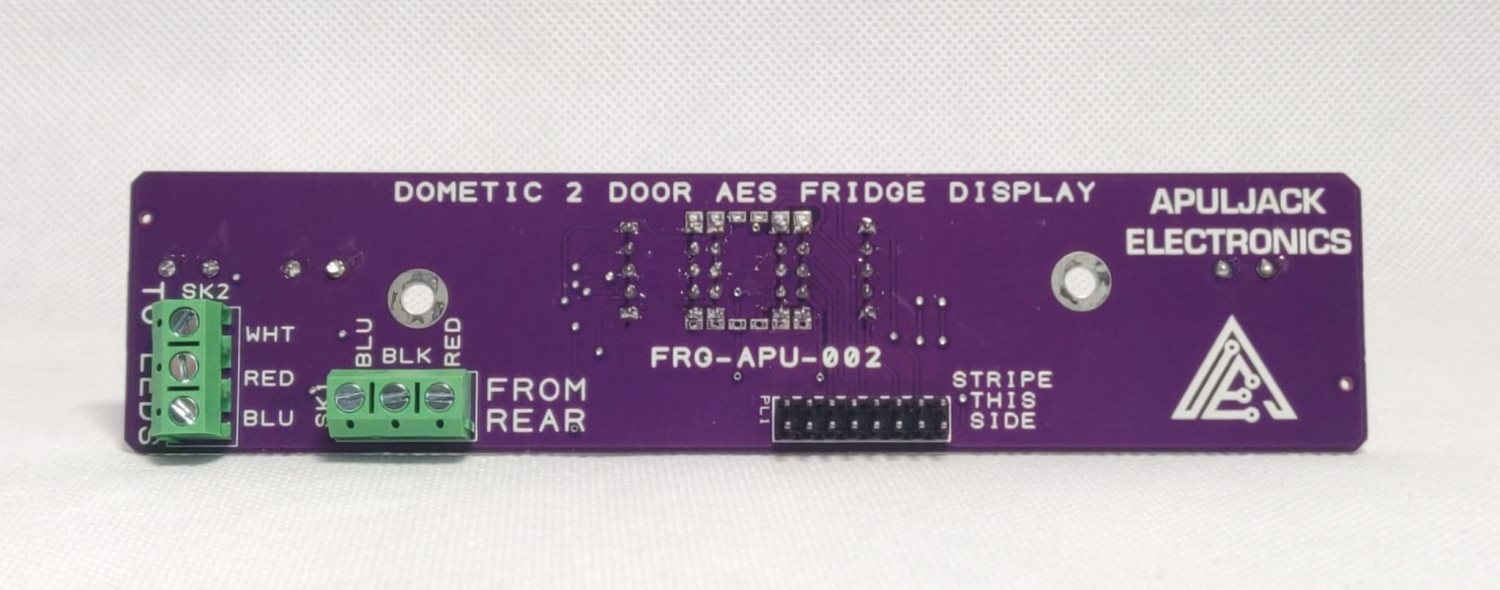

Fitting is achieved by removing the front bezel and then removing the display assembly.  You simply cut the ribbon cable to remove the old display then squeeze on the supplied connector and plug the ribbon onto our new PCB.  The other wire connections for the Red/Blue LED panel in the door are also cut off and then fitted to simple screw terminals.

If your display has faint segments and the number “717” is shown on the digits then you have the connector round the wrong way!

If you need to replace your existing ribbon cable, or would like to purchase one as a spare, please click here.
